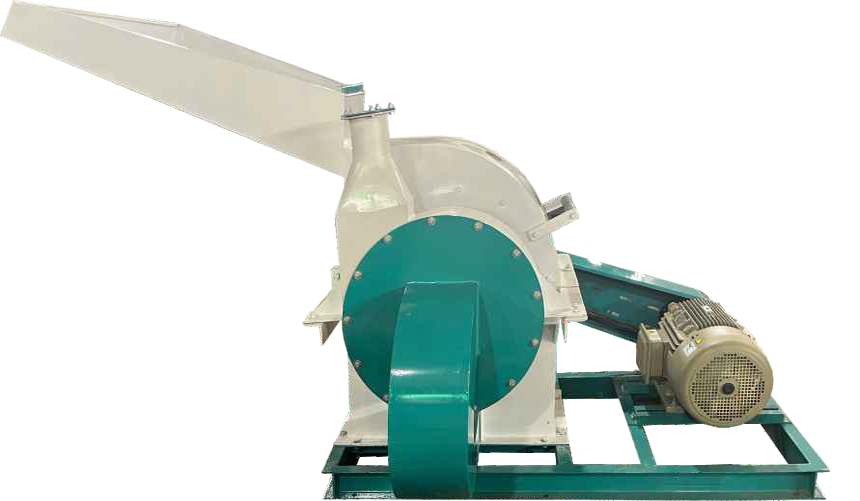

Hammer machine
Highly Efficient Hammer Machine is used to grind different material in powder form or further use.
Hammer Machine helps to reduce plenty of rice husk storage space, and the
rice husk powder can be used in making poultry feed, such as cattle feed,
chicken feed, etc. The rice husk power can be used to make biomass fuel,
which increases the husk burning efficiency.
The material to be crushed enters the grinder machine from the top of the
hammer mill, enters the crushing chamber from the left or right side
through the feed guide plate, and under the action of the high-speed
rotating hammer and the friction of the sieve plate, the material is gradually
crushed, and the centrifugal force and Under the action of the airflow, it is
discharged through the mesh hole from the base discharge port.
Salient features:
- It is widely used for crushing paddy husk, corncob, wheat, herbal medicine, wood etc
- The crushing chamber is wider and the sieving area is larger, which makes the output larger and greatly improves the crushing efficiency.
- The linkage door shaft mechanism makes the operation and maintenance more convenient and labor-saving. Save installation space and the appearance is more beautiful.
- The rotor has better stability after dynamic balance effect.
| Model No. | Capacity of Rice | Power (HP)-Qty | Speed | Dimension (LxWxH) in mm |
|---|---|---|---|---|
|
MMHM-3T |
3 Ton/Hr |
3 HP / 1440 RPM |
1100 RMP |
2300x1350x1440 |
|
MMHM-4T |
4-5 Ton/Hr |
5 HP / 1440 RPM |
1292 RMP |
2300x1500x1440 |
|
MMHM-6T |
6 Ton/Hr |
5 HP / 1440 RPM |
1292 RMP |
2300x1700x1440 |
