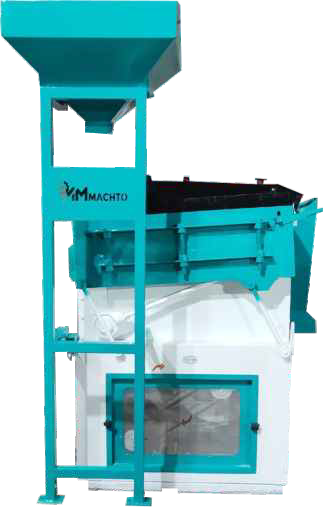

Gravity Separator
Highly Efficient Gravity Separator is used to remove partially broken rice to ensure maximum quality of the final product.
Salient features:
- Can easily separate granular materials according to the weight of the product.
- Easy adjustment of deck inclination in both longitudinal and transverse directions.
- Precise Control of air, feed rate and speed of deck motion.
- Easy deck removal for cleaning.
- Multi-fan system for accurate control of air.
Gravity Separator is used to separate products of the same size but with a difference in
specific weight, They can be used effectively to remove partially broken rice to ensure
maximum quality of the final product.
Gravity Separators have a rectangular deck so that the product travels a longer distance
resulting in cleaner separation of light and heavy particles and the lowest percentage of
middlings. The product flows over the vibrating deck in which pressurized air is forced
through causing the material to stratify according to its specific weight. The heavier particles
travel to the higher level and the lighter particles travel to the lower level of the deck.
In order to obtain efficient separation by specific weight, the pressurized air supply needs to
be accurately adjusted and this is accomplished by having individually adjustable air fans to
control the volume of air distribution at different areas of the vibrating deck. The table
inclination, speed of eccentric motion and the feed rate can be precisely adjusted with ease
and minimum of operator training.
| Model No. | Capacity | Power (HP)-Qty | Volume |
|---|---|---|---|
|
MMGS-120 |
0.75-1 tph |
6 |
3.5 cu. Mtrs. |
|
MMGS-210 |
1.5-1.75 tph |
6 |
5.75 cu. Mtrs. |
|
MMGS-320 |
2.5-3 tph |
8.5 |
8.25 cu. Mtrs. |
